Armoni VENT is a fan-assisted aluminium design radiator designed to comply efficiently with low-temperature heating systems. Thanks to its high heating capacity verified by test results, it delivers stronger performance compared to underfloor heating systems and conventional radiator solutions.

By combining the radiant heat output through its aluminium body with fan-assisted airflow, it provides increased heating capacity and offers a comfortable, elegant and powerful solution for modern heating systems.

TECHNICAL SPECIFICATIONS

Heat Pump Icon
For Low & Standard Temp.
Systems & Heat Pumps

Radiant Heat Icon
Radiant Heat Power

Fan Boosted Convection Icon
Fan Boosted Convection

Stylish Design Icon
Stylish Design

Quiet Operation Icon
Quiet Operation

Quick and Easy Mounting Icon
Quick and Easy Mounting

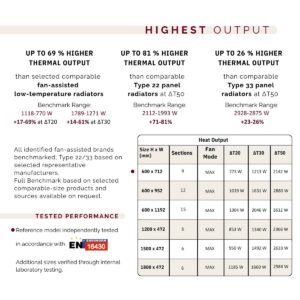

Heat Output

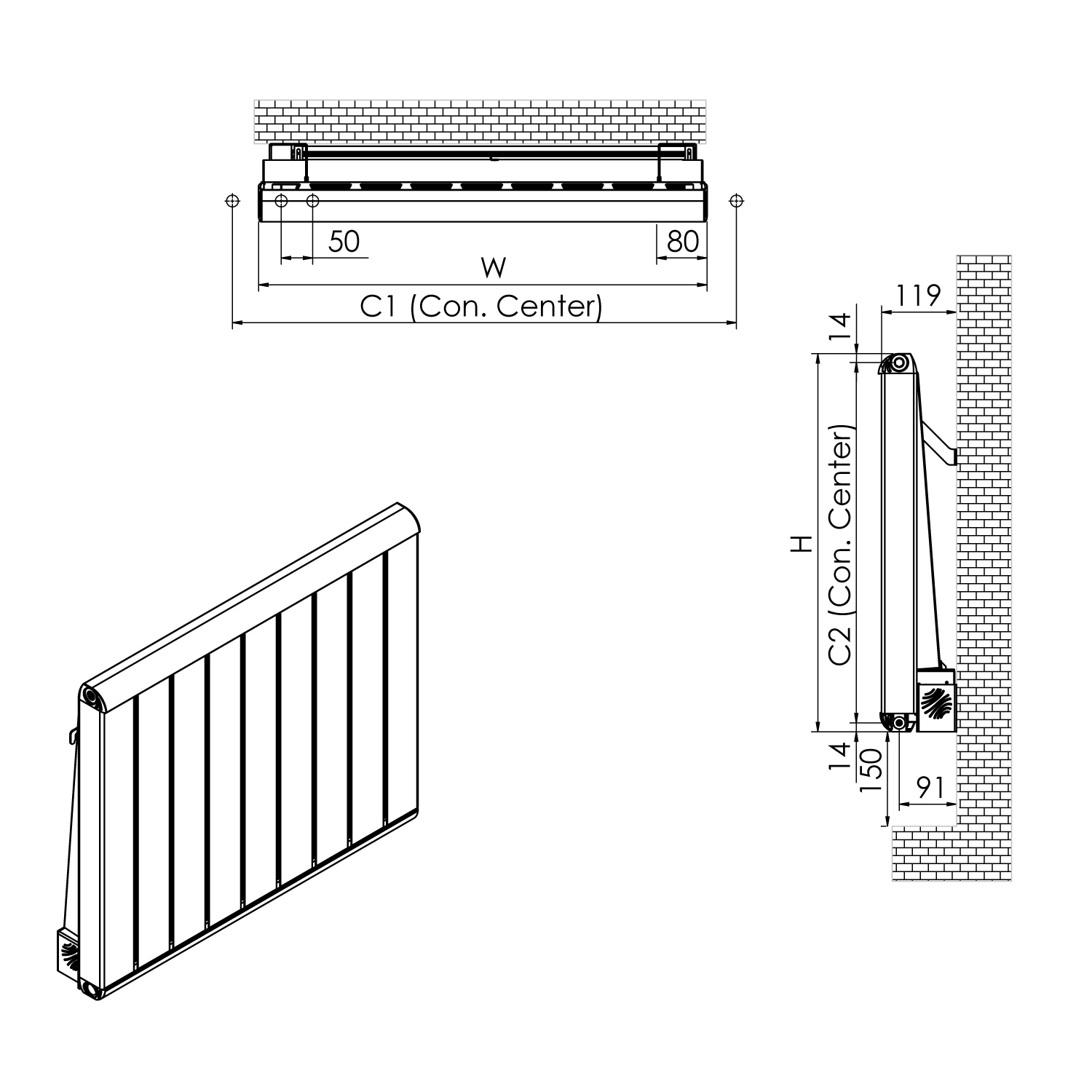

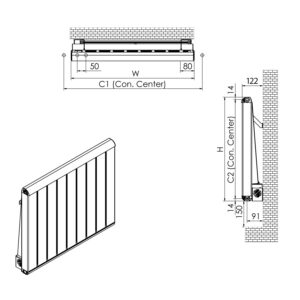

Size H x W (mm) Sections Mode ΔT20 ΔT30 ΔT50
600 x 712 9 MIN 408 W 641 W 1132 W
MED 609 W 956 W 1687 W
MAX 773 W 1213 W 2142 W
600 x 952 12 MIN 549 W 862 W 1522 W
MED 819 W 1286 W 2269 W
MAX 1039 W 1631 W 2880 W
600 x 1192 15 MIN 688 W 1081 W 1909 W
MED 1027 W 1612 W 2845 W
MAX 1304 W 2046 W 3612 W
1200 x 472 6 MIN 451 W 707 W 1249 W
MED 672 W 1055 W 1862 W
MAX 853 W 1340 W 2366 W
1500 x 472 6 MIN 502 W 788 W 1390 W
MED 748 W 1174 W 2073 W
MAX 950 W 1492 W 2633 W
1800 x 472 6 MIN 633 W 918 W 1820 W
MED 924 W 1397 W 2520 W
MAX 1185 W 1660 W 2984 W

Fan, Control and Operating Limits
Technical Data Specification
Fan Motor Technology Electronically Controlled DC Motor
Fan Supply Voltage (V DC) 24 V DC

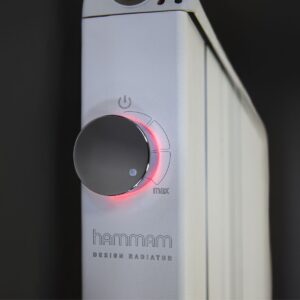

Control Unit Type Manual 3-Speed Control
Control Positions OFF – MIN – MED – MAX
Max. Operating Pressure (bar) 10 bar
Max. Operating Temperature (°C) 75 °C
Electrical Supply (V AC) 230 V AC / 50 Hz
Safety Feature SELV (Safety Extra Low Voltage) compatible fan circuit
